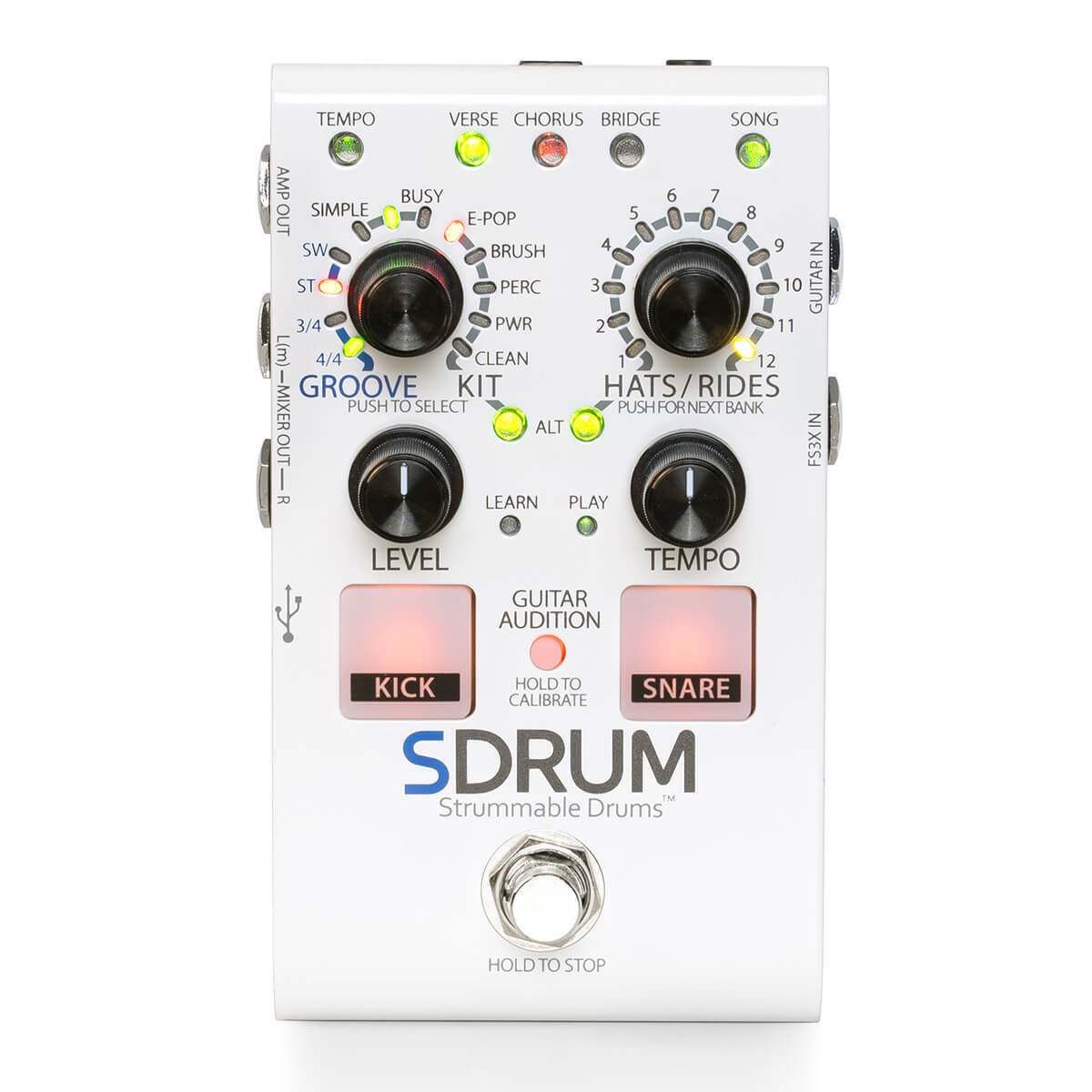

Used Digitech SDRUM Strummable Drums Guitar Pedal

available at

See All Locations

Low in-store inventory, may be subject to change.

BeatScratch™ Technology lets you teach the SDrum a drum pattern by strumming your strings.

Groove / Kit Knob

Select between 5 different kits, 3 different embellishment levels (simple to busy), and various groove styles and time signatures to customize the drumbeats.

Learns up to 3 different song parts

3 parts per song each with 3 different intensities for realistic transitions from Verse to Chorus to Bridge.

SPECIFICATIONS

General Specifications
Controls	Groove/Kit, Hats/Rides, Level, Tempo
Backlit Buttons	Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition
Pads	Kick, Snare
Footswitches	Main Footswitch
LEDs	Learn, Play
Jacks	Guitar In, FS3X In, Amp Out, Mixer Out L(m), Mixer Out R, JamSync Out
Other	Mini USB port

Inputs
Guitar Input	Type: Unbalanced, 1/4" TS / Impedance: 1 MΩ / Max Input: +8 dBu
FS3X Input	Type: 1/4" TRS (compatible with DigiTech FS3X)

Outputs
Amp Output	Type: Unbalanced, 1/4" TS / Impedance: 1 kΩ / Frequency Response: 20 Hz–20 kHz
Mixer L/R Outputs	Type: Impedance balanced, 1/4" TRS / Impedance: 1 kΩ / Max Output: +19 dBu / Frequency Response: 20 Hz–20 kHz
JamSync Outputs	Type: 1/8" TRS

Performance
Bit Depth	24-bit
Sample Rate	44.1 kHz
Signal-To-Noise Ratio	≥108 dB, A-weighted
THD + Noise	0.004% @ 1 kHz

Storage
Maximum Bars	4 bars per song part
Maximum Parts	3 per song
Maximum Songs	36

USB
Type	Mini-B, USB 2.0

Physical
Dimensions	5.25” (L) x 3” (W) x 2.45” (H) / 133.4 mm (L) x 76.2 mm (W) x 62.2 mm (H)
Unit Weight	1.14 lb / 0.52 kg
Shipping Weight	1.92 lb / 0.87 kg

Power
Power Requirements	9 VDC external power adapter
Power Consumption	<5 W
Current Draw	500 mA
Power Adapter Model	PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output	9 VDC 1.3 A
